Характеристики

Type: Multi-Function Packaging Machine

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Food & Beverage Shops

Weight (KG): 800

Showroom Location: None

Function: Wrapping, Labeling, COATING, Sealing

Application: Food, Commodity, Medical, Chemical, Machinery & Hardware

Packaging Type: Bags, Film, Foil, Pouch

Packaging Material: Plastic

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 220v/380v

Dimension(L*W*H): 2800*1350*1720mm

Warranty: 1 Year

Key Selling Points: Long Service Life

Marketing Type: Ordinary Product

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox

Production Capacity: 20bag/min, 40bag/min, 25bag/min, 50bag/min, 30bag/min

Product name: candy packing machine

Bag type: Pillow Bag

Machine type: Multi-function Packing Machine

Packing material: CPP. PET

Machine material: Food Grade SS304

CNC: YES

FACTORY: YES

Customization: yes

payment item: 30%down,70% balance before shipping

product accuracy: error<1%

Основная информация

Оплата и доставка Условия

Packaging Details: Wooden Box

Supply Ability: 800 Set/Sets per Year

Характер продукции

Related Products

Product Description

Main Performance And Structure Features:

1. Automatic shows error in touch panel, safety shield, safety switch.

2. This system can store products’ parameters more than 100pcs. The touch screen shows everything in Chinese (English), operation indication, error signal and quantity.

3. Easy operation and size management via touch panel.

4. Pack size is independent of the product size: narrow and wider packs are possible.

5. Auto-splicer. Economic energy and packaging material usage.

6. Fast speed, less empty bags, steady packing capacity.

7. Easy to change the spare parts, whole structure designed for long time using.

8. Low noise. Use synchronization belt.

We also supply other devices:

1.Date coding printer, 2.Air-filling device, 3.Punching device

4.Double frequency converter controller / servo motor for choice

Note: We can design and make machine according to the customers’special needs.

Machine parameters
Model	ECHO -300	ECHO -660
Capacity	Max 350 pcs/min	Max 1200 pcs/min
Packing Spec.	Length 80-300,60-100mm Width 20-80mm Height<40mm	Length 55-185mm Width 15-60mm Height 5-30mm
Max Width of Film	300mm	150mm
Max Diameter of Film	350mm	300mm
Power	220V 50/60HZ 3KW	380v 50/60hz 9.6kw
Machine Size(mm) *(LWH)*	3100×2100×1550 mm	9800×1000×1700mm
Machine Weight	700kg	1600kg
Chocolate Shape	Round,square, small rectangle,Ellipse,Oblate, Globular,Plum Blossom-Shaped etc.
Application Product	Automatic Pillow Packaging for Chocolate Products.
Packing Material	OPP,CPP,PET Metallized film, Al-plastic film, Paper-rubber complex,etc.
Working Hour (suggestion):	less than 24 hours per day.

Parts of Machine
Parts	Touch Screen	PLC	Servo Motor	Cylinder	proximity switch	Photo Sensor	Solid State Relay	Temperature Controllor
Brand	SIEMENS	SIEMENS	PANASONIC	AIRTAC	TOSHIBA	SICK	SHENGLONG	OMRON
Oringin	Germany	Germany	Japan	China	Japan	Germany	China	Japan
The Parts Can Be Replaced As Your Need.

Our Services

Pre-sale Service

1. Equipment model selection;
2.according to the special requirements of customers, personalized customized products;
3. Train technicians for customers free of charge;
4. Free professional technical engineers to plan the site on site and design the best process and plan.

5. Acceptance of the product;
6. Assist the client in drafting the construction plan;

Medium-sales Services:
ECHO have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.

After-sales Service

1.One Year Warranty
As long as there is a non-human fault in a year,free re-placement parts.
2.Parts Replacement
Don’t worry about the parts damaged or not sold after the machine is sold.we have a field factory with hundreds of enployees to serve you.
3.Engineer Asssignment
Lifelong maintentance,If your equipment breaks down,we will arrange engineers to repair it.
4.Online Instruction
We open online services,as long as your equipment failure,our engineers will be the first time for a one-to-one trou-bleshooting.
5.Feedback Survey
The engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.

Company Address:

No. 81, Dongsan Road, Nanbin Street, Ruian City, Zhejiang Province,China

If You Would Like To Visit Our Just Now,Plese Contact Us and We Will Arrange a Special Bus To Pick You Up.

Kindly Reminder:

Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.

1. Product details

2. Bag width,bag length

3. Bag shape

4. Packing film material

5. Machine frame

ECHO MACHINERY is still developing, and the products are also being innovated.

Welcome our old and new customers to visit our factory and make the consultation.

We will provide professional packaging solutions for you!

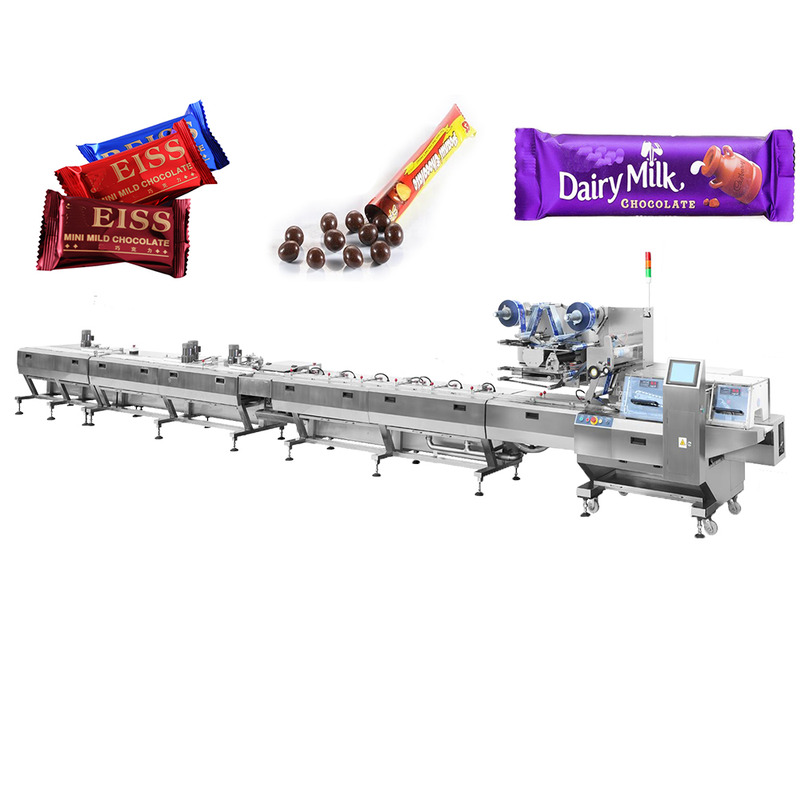

automatic food chocolate packaging machine
