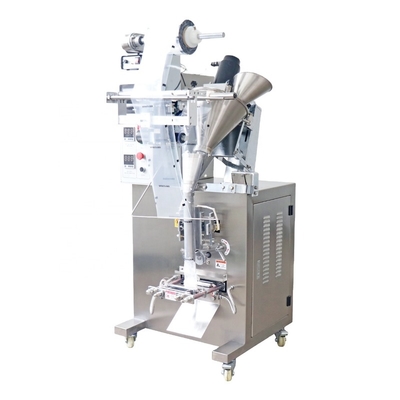

1. The whole structure:This machine integrates mechanical and electrical together. And the whole machine is controlled by PLC(Programmable Logic Controller).
2. Photoelectric on membrane:It adopts PLC control photoelectric correction system, and equipped with high-precision stepping motor, to ensure the integrity of the packaging film pattern, it can control the system of complete synchronization,length fixing, orientation and speed of whole machine.
3. Adjusted the bag length: If turn off on the membrane system, you can adjust the parameter to adjust the bag length, although the film width is fixed, so as to adjust the amount of packaging.
4. Measurement and subpackage method: The machine according to the measuring cup size and measuring the regulating handle manually adjust to realize partial shipments and measurement function.
5. All functions: this machine is fully automatic machine. Can automatic accounting bag (film), on film, The date of printing (need to match the ribbon code printer linkage device), measuring, filling, sealing, cutting film ,and so on.
Mode | HP-100P | HP500P | HP1000P |
Packing speed | 15-50Packs/min | 15-50Packs/min | 15-50Packs/min |
package style | Back seal or three-side, four-side seal | Back seal or three-side, four-side seal | Back seal or three-side, four-side seal |
Sealing form | Tooth shape or customized flat mouth shape | Tooth shape or customized flat mouth shape | Tooth shape or customized flat mouth shape |
Sealing temperature | 0-300℃ | 0-300℃ | 0-300℃ |
Power | 220V/50HZ 1550W | 220V/50HZ 1550W | 220V/50HZ 1550W |
Maximum film width | 300mm/400mm | 300mm/400mm | 300mm/400mm |
Applicable film | Composite packaging film | Composite packaging film | Composite packaging film |
Packing quantity | 1-100g | 50-500g | 100-1000G |
Bag size | 20-140*200mm | 20-200*270mm | 20-200*270mm |
Product Size | 75*90*160cm | 80*108*200cm | 80*108*200cm |
Weight | 240kg | 300kg | 320kg |
A: We are factory and trade union business,But we are specialized in trade business.
A: Generally it is 5-10 days. or it is 15-30 days if the goods are not in stock.
A: Yes, we could offer the sample for free chargen, but do not pay the cost of freight.
A: 30% T/T in advance ,balance before shippment.Or pay through online trading platform
