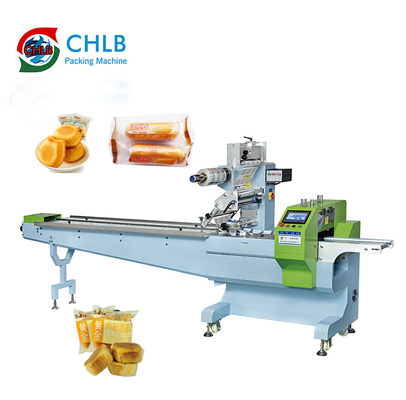

Bread croissants Alfajores baguette flow packing machine full servo motor
Standard features:
3 independent motors (Conveyor, center sealing and end sealing)
Motion controller for quick response to various commands
Accurate positioning
Digital temperature control
Food grade SUS304 contact parts
Brush extrude air from bag
Touch screen
Special features:
All control in one touch screen, user-friendly and easy operation
Empty bag prevention, no product no bag
Product cutting prevention, machine will stop once cutter cuts the product
Memory function, can store 99 groups of package parameters (product position, packing speed, bag length)
No limit for product length
Baguette bread packing machine price
Output |
Up to 100 products per minute |
Size Range |
|
Package cut-off length |
50-6000mm |
Product width |
max.240mm |
Product height |
max.80mm |
Packaging Material Reel |
|
Reel diameter |
≤300mm |
Core diameter |
≤75mm |
Packaging material width |
max.500mm |
Weight |
max. 25KG |
Connections |
|
Voltage |
220V,50HZ |
Power usage |
4.6KW |
Machine weight |
600kg |
Machine dimensions |
L4100mm*W1050mm*H1500mm |
Blade cut type |
Rotary cutter |
Motor configuration |
Full servo |
Optional Device |
date printer, auto feeder, gas charger, etc. |
Component list:
Component | Brand |
Solid state relay | Omron/Japan |
Photoelectric switch | SICK/Germany |
Circuit breaker | Schneider/France |
Buttons and switches | Schneider/France |
Date printer | Jukai/China |
Touch screen | MCGS/China |
Servo motor | Dorna/China |
Servo driver | Dorna/China |
Remark: Above is for reference only. Please refer to actual production. |
Free spare parts list:
No. | Item | Qty |
1. | Tool box | 1pc |
2. | Horizontal seal heating bar | 1pc |
3. | Vertical seal heating bar | 1pc |
4. | Socket head wrench | 1set |
5. | Cross screwdriver | 1pc |
6. | Slot type screwdriver | 1pc |
7. | Monkey wrench | 1pc |
8. | Ink roll(if machine with printer) | 3pc |
9. | Solid-state relay | 1pc |
10. | Knife | 1pair |
11. | Pusher | 5pc |
Foshan Chuanglibao Packaging Machine Co., Ltd.
was founded in 1998. We specialize in packing machine design and manufacture. After nearly 20 years of development, our machines have been widely used for food, frozen food, daily article, disposable appliance, medical appliance, hardware, agriculture, chemistry’s packing, etc. and have been receiving positive feedback from customers all over the world.
We have our own R&D department and focus on the innovation of technologies and products. We not only manufacture machines but also provide packing solutions including customized design and modification. Our products have been exported to over 60 countries which are all approved by CE certification and with many technical patents. We also have a professional after sales team who provides machine installation, debugging and comprehensive technical supports.
For the future, we will keep devoting ourselves to improve our technologies and products. To achieve your expectations and create your profits
is always our mission
FAQ:
Q1: Can you send me the installation video of this machine? A1: Yes, please check the link for this video
Q2: What is the material of contact food/material parts? A2: The contact food/material parts are made of 304# stainless steel. The machine body can be 304# stainless steel or carbon steel.
Q3: Can this machine make different bag sizes? A3: One former can make one bag width, and the bag length can be adjustable within a range. It should be ordered an extra former if you want to make the other bag width.
Q4: Does your company accept OEM? A4: Yes, we have a professional design and technical team to accept customization.
Q5: When you can deliver the machine after the order is placed? A5: We usually can arrange shipment after 30-40 working days, but it depends on the quantity of the products.
Q6: How about your warranty? A6: We provide 13 months warranty, starts from the issue date of bill of lading.
Q7: What can you provide after service? A7: We can provide machine testing video and pictures before delivery, English manual, some free spare parts, installation in clients' factory and technical training. |
